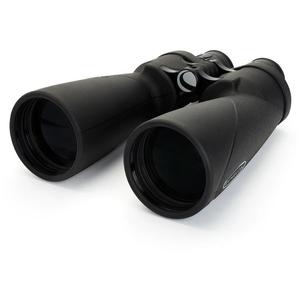

Celestron Echelon 16x70 Binoculars

Echelon binoculars

Keywords: Binoculars Basic


Loan ends in 22 days on April 30, 2020 (Thursday).

Celestron’s large-aperture Echelon series binoculars were designed for use in low light conditions. Whether you are long-range glassing across a field or valley, or gazing at the splendors of the Milky Way, a pair of Celestron Echelon binoculars will get the job done. With an exit pupil of 4.4 mm, these binoculars deliver an amazing amount of light allowing you to see the most detail possible.

With the next to highest magnification in the Echelon series, the 16x70 model offers great magnification for astronomy, and provides enough power to bring small subjects into view, even at long distances.

Celestron Echelon binoculars sport high quality 70 mm objective lenses made in Japan. Superior BaK-4 prisms were chosen for maximum contrast and sharpness, and all air-to-glass surfaces are multi-coated with Celestron’s proprietary XLT optical coatings—the same high transmission coatings used on our observatory-grade telescopes to increase contrast and resolution.



Objective Lens Diameter (mm) 70 mm (2.76")
Magnification (x) 16x
Apparent Field of View 3.8°
Linear Field of View (@1000 yds) 199 ft/66 m
Exit Pupil (mm) 4.38 mm (0.17")
Eye Relief (mm) 18.6 mm (0.73")
Optical Coatings XLT Coatings (Fully Multi-Coated)
Dimensions LxWxH (mm/in) 258 mm x 222 mm x 84 mm (10.15" x 8.74" x 3.31")
Prism Glass (Type) Bak-4
Twilight Factor 33.47x
Relative Brightness 19.2
Water Proof Yes
Nitrogen Filled (Fog Proof) Yes
Interpupillary Distance 28-72 mm
Diopter Compensation ± 4
Tripod Adaptable Yes
Weight 65oz (1840g)


The descriprion and the photo are obtained from the Celestron website.  More information about this binoculars can be found at http://www.celestron.com/products/echelon-16x70-binocular .
